Semi-automatic Electric Heating Hydraulic Four-layer Motorcycle Tyre Curing Press with 380V/50Hz Power and 220V/380V/Customized Voltage

Merknaam:	Beishun
Modelnummer:	8“ - 18“
MOQ:	6sets
Prijs:	Onderhandelbaar
Verpakking:	40GP
Betalingsvoorwaarden:	L/C, T/T, Western Union

Gedetailleerde informatie

Productbeschrijving

Gedetailleerde informatie

Plaats van herkomst:

Qingdao

Certificering:

ISO/CE

Stroom:

380V/50Hz

Frequentie:

50Hz/60Hz

Materiaal:

Staal

Verwarmingstype:

Elektrisch of stoom

Hs-code:

84778000

Kolven Qty:

Spanning:

220V/380V/Aangepast

Drukbereik:

0-200 MPa

Effectieve dikte:

1-4 mm

Verwarmingsweg:

Elektrisch of stoom

Type:

Volledig automatisch

Productiecapaciteit:

100-120 stuks per uur

Het verbinden van breedte:

Maximum 160mm

Oorlogs-:

1,5 Jaar

Capaciteit:

100-120 banden per uur

Levering vermogen:

80sets

Markeren:

Electric Heating Motorcycle Tyre Curing Press

Hydraulic Tire Vulcanizing Press

Four-layer Motorcycle Tire Vulcanizing Machine

Productbeschrijving

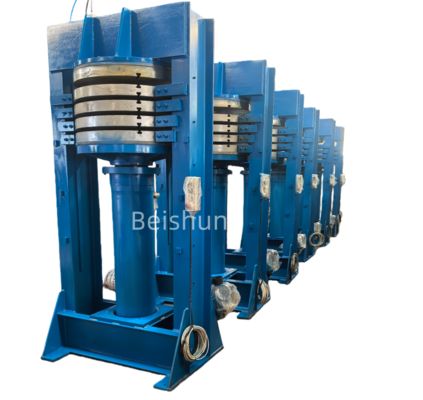

Semi-automatic Electric Heating Hydraulic Four-layer Motorcycle Tyre Curing Press Machine

This specialized equipment is designed for manufacturing and retreading motorcycle tires. The machine transforms soft, uncured rubber "green tires" into durable finished products through precise heat and pressure application in a mold - a process known as vulcanization.

Key Features Explained

Motorcycle Tyre Curing Press: Specifically designed for motorcycle tire sizes (8"-18"), using vulcanization to cross-link rubber polymers for durability.
Four-Layer Design: Four independent curing stations vertically stacked for space efficiency, allowing simultaneous processing of multiple tires.
Hydraulic System: Provides high, controllable clamping force to seal molds and maintain internal pressure during curing.
Electric Heating: Embedded heating elements offer precise temperature control (150-180°C) without steam boiler requirements.
Semi-Automatic Operation: Combines manual loading/unloading with automated curing cycles for efficiency and consistency.

Technical Specifications

Curing Tire Size	8"-18"
Green Tire Max Height	155-300
Mould Max Diameter	Φ 750
Power	15-18KW
Max Distance Between Hou Plate	690
Bladder Pressure (kgf/cm²)	18-20

Workflow Process

Preparation: Clean mold and prepare green tire
Loading: Place tire in bottom mold half
Cycle Start: Initiate automated curing process
Curing: Hydraulic pressure, electric heating, and bladder inflation
Cycle End: Pressure release and mold opening
Unloading: Remove finished tire and trim excess

Product Advantages

High productivity with four-layer simultaneous processing
Space-efficient vertical design
Consistent quality through precise temperature and pressure control
Operator-friendly semi-automatic operation
Cost-effective balance of automation and manual operation
