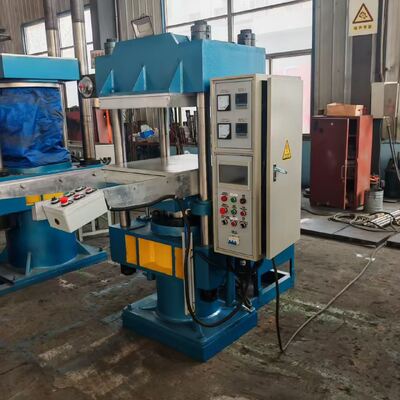

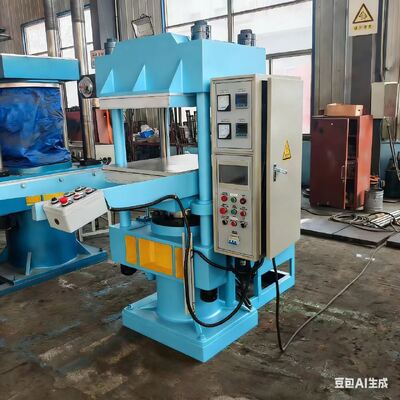

80-ton Column-type Precision PLC Fully Automatic Flat Vulcanizing Machine

Merknaam:	Beishun
Modelnummer:	XLB-500×500/0,8MN
MOQ:	1SET
Prijs:	Onderhandelbaar
Betalingsvoorwaarden:	L/C, T/T
Leveringsvermogen:	30 sets/40 dagen

Gedetailleerde informatie

Productbeschrijving

Gedetailleerde informatie

Plaats van herkomst:

Qingdao

Certificering:

ISO/CE

Verwarming:

Elektriciteit / Olie / Stoom

Structuurstijl:

Horizontaal

Cilinder slag:

500 mm

Controle:

PLC automatisch

Het vulcaniseren Tijd:

0-999s

Machinetype:

Hydraulische/mechanische vulkaniseerpers

Andere naam:

Flat Vulcanizing Press

Temperatuurbereik:

0-400 ℃

Bedrijfstemperatuur:

Tot 300°C

Compatibiliteit met schimmels:

Aangepaste mallen ondersteund

Verwarmingsmodus:

1 stks-5 stks

belangrijkste verkoopargumenten:

Goede kwaliteit en prijs

Verpakking Details:

40GP/OT

Markeren:

80-ton PLC vulcanizing machine

column-type flat vulcanizing press

automatic rubber vulcanizing machine

Productbeschrijving

80-ton Column-type Precision PLC Fully Automatic Flat Vulcanizing Machine

Applications & Capabilities

This advanced 80-ton column-type precision PLC fully automatic flat vulcanizing machine is engineered for high-performance rubber hydraulic molding across diverse industrial applications:

Silicone Rubber Products: O-rings, mobile phone keyboards, computer keyboards, remote control buttons, pressure cooker and rice cooker sealing gaskets, household appliance components, food and medical device parts, nipples, medical supplies, handicrafts, toy seals, conductive rubber, automotive rubber parts, industrial rubber components, medical silicone products, sports equipment, various utensils, multi-layer molded products, plywood, epoxy resin boards, carbon fiber boards, PI films, and various composite materials and rubber-plastic products for hot pressing, shaping, manufacturing, and processing.
Flat Tapes and Sheets: Precision molding of flat tapes, sheets, and polymer flat products.
Seals and O-rings: Production of various rubber molded and non-molded products including seals, O-rings, oil seals, gaskets, thermosetting plastics, foams, resins, building materials, and diverse rubber-plastic products.

These machines are essential equipment in the rubber products industry, delivering precision, reliability, and automation for demanding manufacturing environments.

Technical Specifications

Model	XLB-D350X350	XLB-D400X400	XLB-D600X600	XLB-D750X850	XLB-D900X900
Total Pressure	0.25mn	0.50mn	1.00mn	1.60mn	2.50mn
Platen Size	350x350mm	400x400mm	600x600mm	750x850mm	900x900mm
Daylight	125mm	125mm	125mm	125mm	125mm
Working Layer	2	2	2	2	2
Piston Stroke	250mm	250mm	250mm	250mm	250mm
Heating Method	Electric	Electric	Electric	Electric	Electric
Platen Unit Area Pressure	20kg/cm²	31kg/cm²	28kg/cm²	31kg/cm²	31kg/cm²
