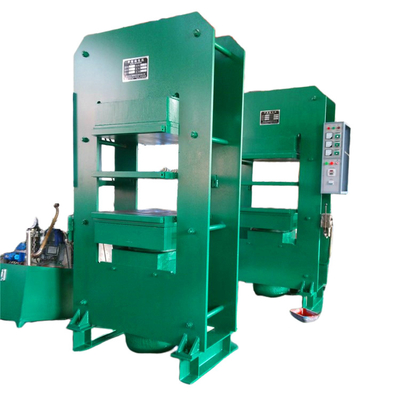

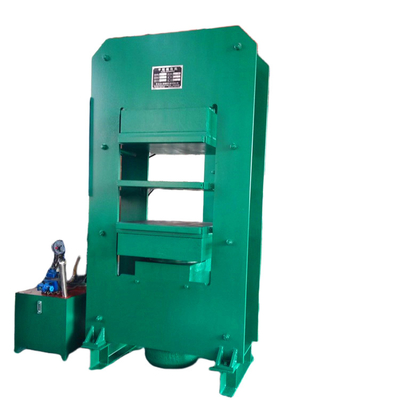

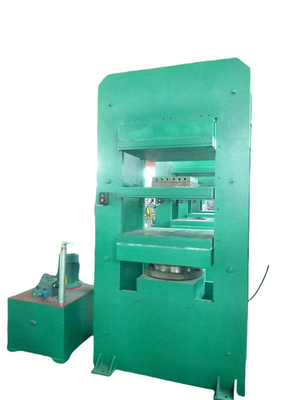

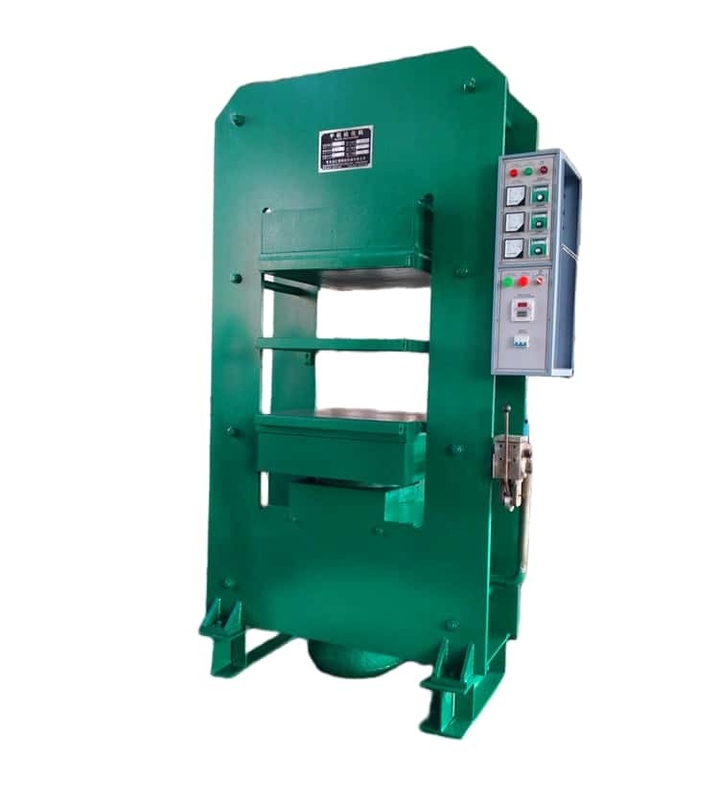

High Thermal Efficiency Two-layer Frame Plate Vulcanizing Machine - Used To Manufacture Rubber Fiberboard

Merknaam:	Beishun
Modelnummer:	XBL-1000*1000/5.00MN
MOQ:	1 set
Prijs:	Onderhandelbaar
Betalingsvoorwaarden:	T/T,L/C

Gedetailleerde informatie

Productbeschrijving

Gedetailleerde informatie

Plaats van herkomst:

Qingdao, China

Certificering:

ISO/CE/SGS

Stroomvoorziening:

Aanpassing

Het verwarmen manier:

Elektrische / stoomverwarming

Maximale productgrootte:

1000 x 1000 mm

Pressure Range:

16.8(mpa)

Stroombron:

Elektrisch

Platenkloof:

300 mm

Gewicht:

5000 kg

Type:

hydraulic

Vulcaniserende plaat Hoeveelheid:

Duikersmateriaal:

Gekoeld Gietijzer

Structuur:

kolomtype

Structuurstijl:

horizontaal

PLC's:

Mitushibi, Siemens.

Cylinder Stroke:

200mm

Kracht:

15 kW

Levering vermogen:

30SET/MONTH

Productbeschrijving

High Thermal Efficiency Two-layer Frame Plate Vulcanizing Machine - Used To Manufacture Rubber Fiberboard

Machine introduction:

1. Types of rubber fiber sheet vulcanizers

(1) Flat vulcanizer (intermittent vulcanization)
Applicable products:

Ordinary rubber sheets (such as anti-slip mats, industrial rubber sheets)

Insulating rubber sheets (for distribution rooms)

Oil-resistant, acid-resistant and alkali-resistant rubber sheets

Conductive/antistatic rubber sheets

Composite rubber sheets with fiber reinforcement layers (such as asbestos rubber sheets, canvas-reinforced rubber sheets)

Working principle:

Put the mixed rubber sheet (or fiber-reinforced rubber composite material) into the mold.

High pressure (usually 10-20MPa) is applied through the hydraulic system, and the heating plate provides temperature (140-180℃).

Maintain a certain time (5-30 minutes, depending on the thickness) to complete the vulcanization.

Equipment features:

Can produce a wide range of thicknesses (1mm~50mm).

Suitable for small batch and multi-specification production.

Multi-layer vulcanization table can be added (to improve efficiency).

Technical Parameters

Parameter	Typical Range	Explanation
Temperature	140 - 180°C	For Natural Rubber (NR), it is usually 150 - 160°C. For EPDM, it can reach 170 - 180°C.
Pressure	10 - 20MPa	To ensure the rubber flows adequately and eliminate air bubbles.
Vulcanization Time	5 - 30 minutes	Depends on the thickness (e.g., for 5mm thickness, it takes about 10 - 15 minutes).
Cooling Method	Natural cooling / Water cooling	To prevent deformation and improve dimensional stability.

High Thermal Efficiency Two-layer Frame Plate Vulcanizing Machine - Used To Manufacture Rubber Fiberboard 0

3. Special requirements for fiber-reinforced rubber sheets
If the rubber sheet contains a fiber-reinforced layer (such as canvas, nylon, polyester fiber or asbestos fiber), pay attention to the following during vulcanization:

Fiber pretreatment: Glue or dip is required to improve adhesion with rubber.

Vulcanization pressure: Higher pressure (15-25MPa) is required to ensure that the rubber penetrates the fiber layer.

Temperature control: Avoid excessively high temperatures that may cause fiber aging (such as nylon fiber temperature resistance ≤180℃).

4. Common Problems and Solutions

Problem	Possible Causes	Solutions
Bubbles/Layering	Insufficient pressure, poor venting	Increase pressure, add venting grooves to the mold
Uneven thickness	Uneven mold, poor fluidity of rubber compound	Adjust the parallelism of the mold, optimize the rubber compound formula
Delamination between fiber and rubber	Untreated fiber or insufficient adhesion	Pre - coat fiber with adhesive, increase vulcanization pressure
Rough surface	Mold contamination, uneven temperature	Clean the mold, check the temperature uniformity of the heating plate

High Thermal Efficiency Two-layer Frame Plate Vulcanizing Machine - Used To Manufacture Rubber Fiberboard 2
